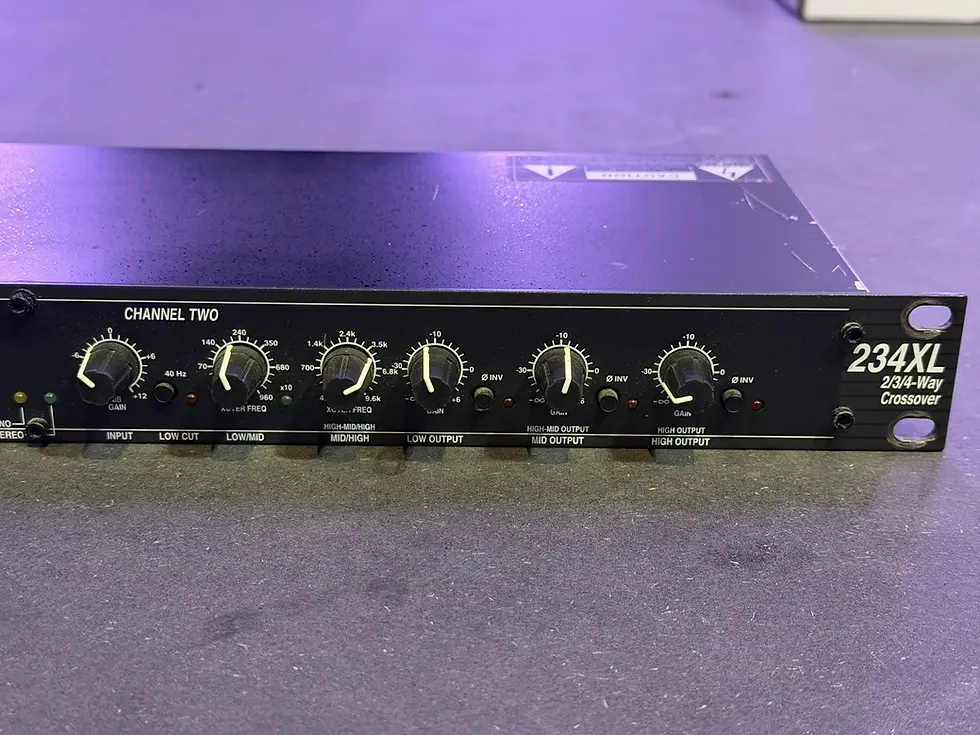

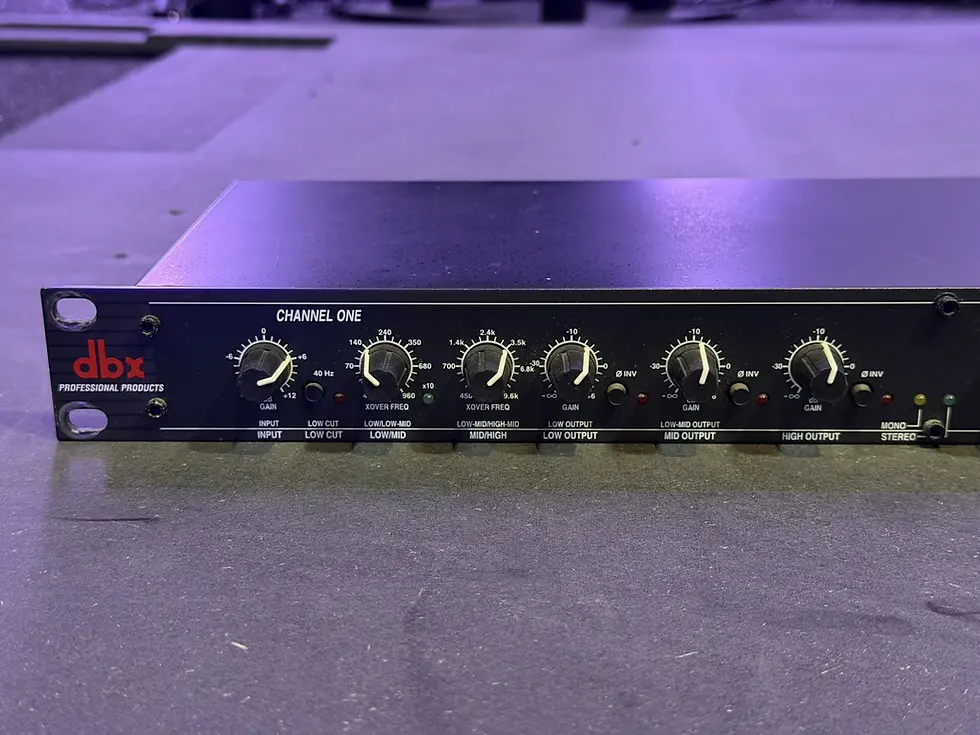

The DBX 234XL is a high-performance analogue crossover designed to optimize loudspeaker systems by dividing the audio signal into precise frequency bands. By directing only specific frequencies to the appropriate drivers, it maximizes amplifier efficiency and protects speakers from damage caused by out-of-range signals.
+1
This unit features industry-standard Linkwitz-Riley 24dB per octave filters, ensuring smooth transitions and minimal phase distortion between bands. Housed in a rugged 1U rack chassis, the 234XL uses XLR balanced inputs and outputs that are securely bolted to the chassis to prevent internal circuit board damage.
+1
Key Operational Modes:
Stereo 2-Way: For traditional sub-and-top speaker setups.
Stereo 3-Way: Splits signal into Low, Mid, and High for complex stereo PA systems.
Mono 4-Way: A dedicated high-precision mode for advanced four-way sound reinforcement.
Technical Features:

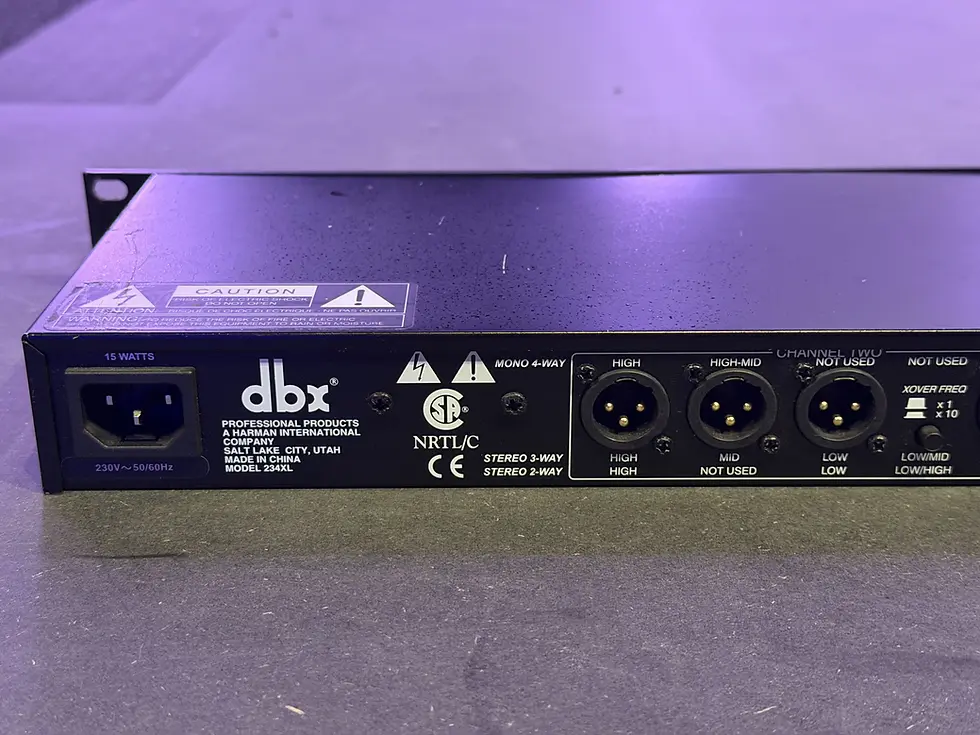

Frequency Control: Dual x10 range switches on the rear panel multiply the crossover points for fine-tuning higher frequencies.
Phase Alignment: Individual Phase Invert switches on every output to correct phase cancellations and improve system clarity.
Protection: Switchable 40Hz Low Cut (High Pass Filter) on each channel to eliminate power-wasting low-end rumble.
Subwoofer Integration: A specialized LF Sum switch for mono-summing the low-frequency output, ideal for dedicated subwoofer systems.
Gain Management: Independent input gain and output level controls (-∞ to +6dB) for perfect level matching across all bands.
