SUB-12X
Deeper extension, perfect discipline.
CONFIGURE AND ADD TO SUB-12 FROM
£1,662.50 EX VAT
SUB-12X is a passive extender for our SUB-12.
An added bass driver doubles the SUB-12's output and allows for extreme flexibility with positioning.
SUB-12X connects to
SUB-12 using an industry standard NL2 cable.
DIMENSIONS
SUB-12X only:
-
Height: 410mm (500mm with Foundation)
-
Width: 350mm
-
Depth: 375mm
-
Weight: 20kg
​

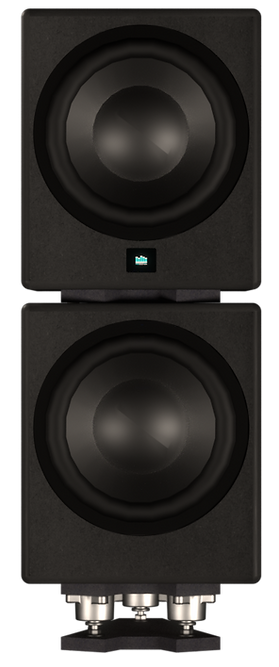

SUB-12 + SUB-12X Stack (with Foundation):
-
Height: 929mm
Width: 350mm
Depth: 375mm
Weight: 44kg
GENERAL SPECIFICATIONS
-
Frequency Response: 20Hz - 120Hz (+/- 3dB)
-
6dB extra SPL capability over the SUB-12
-
Cabinet Design: Sealed enclosure made from high-density, eco-friendly Valchromat
-
Front baffle OLED display with input display, volume, preset, and warnings
-
Infrared remote for power toggle, input switching and volume
-
Auto-switching power input with low-power standby mode
-
Included Foundation Isolation Mount
CONNECTIVITY
-
Inputs (Analogue): XLR (balanced), RCA (unbalanced)
-
Inputs (Digital): AES XLR, S/PDIF, Optical TosLink
-
Outputs (Analogue): Analogue XLR through
-
Outputs (Digital): S/PDIF through
-
NL2 input from SUB-12 main subwoofer
AMPLIFICATION
-
Amplification model: PresentDayProduction SUB-12 Amp Pack
-
Output Power: Bass - 250W
-
DSP: Hypex DSP Crossover and Loudspeaker Management
-
DSP Latency (Analogue): 0.35ms
-
DSP Latency (Digital): 1.8ms
-
User-controllable parametric EQ
-
MBW=20KHz, unweighted, all filters set to unity, gain adjust 0dB
-
SNR AD/DA: -109dB​
-
SNR DA: -111dB
-
THD(D+N) (at -1dBFS) AD/DA: -100dB
-
THD(D+N) (at -1dBFS) DA: -102.5dB
-
DRIVERS
-
Bass subwoofer: Dayton Audio Reference Series RSS315HF-4 12" Subwoofer
-
Triple shorting rings for magnetic flux stabilisation​
-
<0.5% THD
-
Extensive driver venting to eliminate air compression, preventing mechanical asymmetry, noise and power compression.
-
